laser engraving machine for cup
Home > Products > Paper Cup Printing Machine > laser engraving machine for cup

laser engraving machine for cup

laser engraving machine for cup

    Payment Type: T/T,D/P,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days
    Packaging: Wood Package
    Productivity: 1000 Set/sets per Month
    Brand: MEIMAN
    Transportation: Ocean,Land,Air,ROAD/TRAIN
    Place of Origin: JINAN ,SHANDONG
    Supply Ability: Large
    Certificate: CCC,CE,GE,ISO,SGS,UL
    HS Code: 8456110090
    Port: QINGDAO

Basic Info

Model No.: FM-E

Product Description

This laser engraver machine on plastic also can do glass engraving job. This laser engraver machine on plastic also can be applied on fabric and marble. This is a kind of laser engraver machine on plastic. Compared same machine in industry, we add WiFi control in this laser engraver machine on plastic; covered all the X/Y exposure unsafe part to make sure operator working in safety environment.

Parameter

Model

FM-E1309

Colour

Black and white,etc

Working Area

1300*900mm

Laser Power

80W/100W/120W/150W/180W

Laser Type

CO2 Sealed Laser Tube,10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-20000mm/min

Laser Output Control

0-100% Set by Software

Min.Engraving Size

Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Drive System

High-precision Stepper Motor

Worktable

honeycomb table

Power Supply

AC110V/220V±10%50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity5-95%(No Condensate Water)


Aplied materials:

Nonmetal materials such as paper,acrylic double colorboard, plexiglas, common glass,wood,bamboo,plastic,rubber, PE,Stone, ceramic, granite,etc.

Aplicable industries:

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized

embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture , model,industry, craftwork and other industies

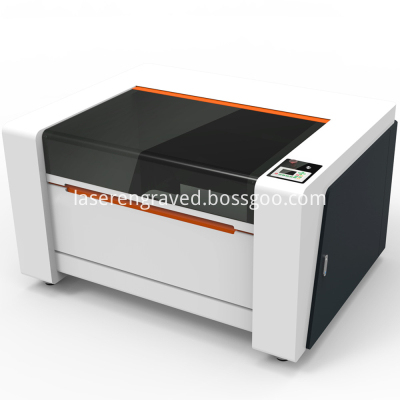

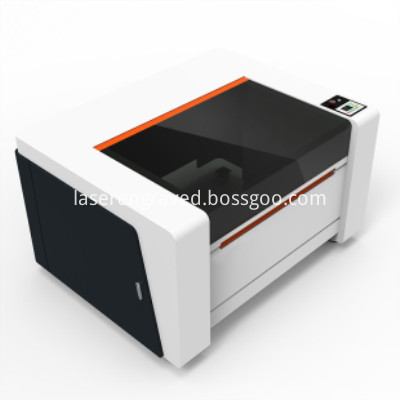

Machine photos

fm2engraving laser cutter1




Product feature

  • Has submitted the application for the patent

  • Interlocking door with auto-shutdown protection device. Graphic Format Supported dst, plt, bmp, dxf, dwg, ai, las,etc

  • Air blow away smoke at the laser head while laser is cutting

  • Optional rotary attachment for engraving round bottles

  • Red Cross accurate positioning, convenient and quick in finding engraving and cutting position.

  • Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect.

  • Equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.

  • Open software interface, compatible with DXF, ai, PLT, DST, DSB and vector file such as BMP, JPG, GIF, PNG, MNG, equipotential graph format.

  • Equipped with water protector, better protection of laser, prolong the service life of laser, optional foot switch, make your operation more convenient.

  • Elegant appearance design;Super strength steel plate, industrial grade;The effective protection of equipment running smoothly and life;

  • Patent technology: unique automatic convulsions smoke dust removal system Blow air protection





Shandong Meiman Laser Technology Co., Ltd.



Shandong Meiman Laser Technology Co., Ltd. headquartered in JINAN, devoted to researching and developing the motion control, machine vision, laser marking & cutting and automatic core parts independently. Based on many years industry application experience and expert-level core R&D team, Meiman Laser aims to provide cost-effective automatic control products and services from simple application to complexity to customers. On the basis of independent innovation, Meiman Laser Technology cooperates closely with domestic universities and research institutions, introducing foreign advanced motion control technology and continuously developing high cost performance new products to adapt to the market demand.

Meiman Laser has motion control, machine vision, and automation product lines, products mainly including low/medium power cutting system, visual positioning & identification cutting system, marking system, high power laser cutting system and automation control, etc.

Meiman Laser control products are popular all over the country and kept its leading position in low/medium power laser processing, and exported to overseas market. Based on laser processing field, Meiman Laser gradually expands to automation control field, in order to provide the complete industry solutions for equipment manufacturers.

"Seek Development, Create Wealth" is our motivation, and "Sincerity-based, Serving customer" is our bounden duty. With "honest, pragmatic, cooperative and enterprising" enterprise spirit, Meiman Laser will constantly develop much better system solutions, and investing more product developments and services to ensure customers leading position in the market.


"World laser technology for better life" is the vision of Meiman laser.

"innovation, breakthroughs, efficiency and service-orientation" are the core concept in the development Meiman laser.

We are proficient in laser technology as well as in product design.

We offer our customers customized solutions and technical services.
